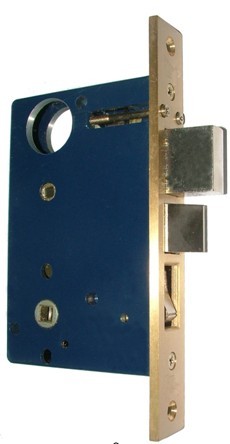

MORTIES LOCKSET: |
 |
We have been making mortise locks for over 10 years. It enjoyed a reputation for long life and their ability to excel in high traffic, high abuse areas.
Available in 2-1/2"; and 2-3/4" backset
Solid brass Bolts, Latches
7 5/8" x 1 1/16" and 8" x 1 1/4" face plate available
Trim type: Escutcheon plates, levers, knobs, roses available | |
| |
| MORTISE LOCK SPECEFICATION |
| |
Item |
Face Plate |
Trim Type |
|
Keyway |
keying |
Striker |
Backset |
Finish |
|
Function |
| 1 |
MLA-US3 |
7 5/8" x 1 1/16" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
US3 |
Surface trim |
Entrance |
| 2 |
MLAX-US3 |
8" x 1 1/4" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
US3 |
Surface trim |
Entrance |
| 3 |
MLA-26D |
7 5/8" x 1 1/16" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
26D |
Surface trim |
Entrance |
| 4 |
MLAX-26D |
8" x 1 1/4" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
26D |
Surface trim |
Entrance |
| 5 |
MLB-US3 |
7 5/8" x 1 1/16" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
US3 |
Thru-bolted |
Entrance |
| 6 |
MLBX-US3 |
8" x 1 1/4" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
US3 |
Thru-bolted |
Entrance |
| 7 |
MLB-26D |
7 5/8" x 1 1/16" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
26D |
Thru-bolted |
Entrance |
| 8 |
MLBX-26D |
8" x 1 1/4" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
26D |
Thru-bolted |
Entrance |
| 9 |
MLBC-26D |
7 5/8" x 1 1/16" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
26D |
Thru-bolted |
Passage |
| 10 |
MLBC-US3 |
7 5/8" x 1 1/16" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
US3 |
Thru-bolted |
Passage |
| 11 |
MLBL-26D |
7 5/8" x 1 1/16" |
Levers |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
26D |
Thru-bolted |
Entrance |
| 12 |
MLBL-US3 |
7 5/8" x 1 1/16" |
Levers |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
US3 |
Thru-bolted |
Entrance |
| 11 |
MLBLX-26D |
8" x 1 1/4" |
Levers |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
26D |
Thru-bolted |
Entrance |
| 12 |
MLBLX-US3 |
8" x 1 1/4" |
Levers |
|
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
US3 |
Thru-bolted |
Entrance |
| 14 |
MLD-US3 |
7 5/8" x 1 1/16" |
Knobs |
Double cylinder |
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
US3 |
|
Entrance |
| 14 |
MLD-26D |
7 5/8" x 1 1/16" |
Knobs |
Double cylinder |
SE1，SC1 |
KD |
4 7/8" |
2 1/2" |
26D |
|
Entrance |
| 15 |
MLBF-US3 |
8" x 1 1/4" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 3/4" |
US3 |
Thru-bolted |
Entrance |
| 16 |
MLBF-26D |
8" x 1 1/4" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 3/4" |
26D |
Thru-bolted |
Entrance |
| 17 |
MLBFC-US3 |
8" x 1 1/4" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 3/4" |
US3 |
Thru-bolted |
Passage |
| 18 |
MLBFC-26D |
8" x 1 1/4" |
Knobs |
|
SE1，SC1 |
KD |
4 7/8" |
2 3/4" |
26D |
Thru-bolted |
Passage |
| 19 |
MLBFL-26D |
8" x 1 1/4" |
Levers |
|
SE1，SC1 |
KD |
4 7/8" |
2 3/4" |
26D |
Thru-bolted |
Entrance |
| 20 |
MLBFL-US3 |
8" x 1 1/4" |
Levers |
|
SE1，SC1 |
KD |
4 7/8" |
2 3/4" |
US3 |
Thru-bolted |
Entrance | |
| |
|
|
|
|
|
| |
| |
| |
|
|
